The Randall Straight Walkramp brings drivers an all-weather, aggressive walk surface constructed from extruded aluminum.  Walk surface panels are replaceable and repairable.  The side rail design is a quarter inch taller to grab onto the handtruck wheel for greater support.

Two styles of lift assists are available – long and short, depending on the dimension from the enclosure to the trailer floor.



Watch the Video

Download Sell Sheet

Quote It

Have questions? Call 800-323-7424

Features

Materials

  • Extruded Aluminum
  • 6061 T6 alloy
  • Grade 8, Cadmium-plated hardware

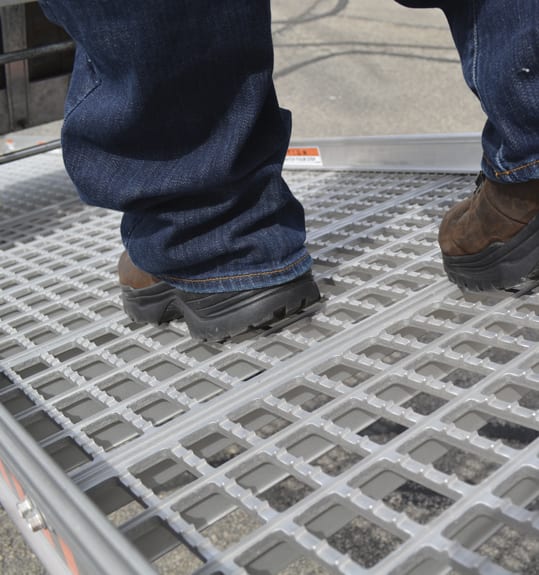

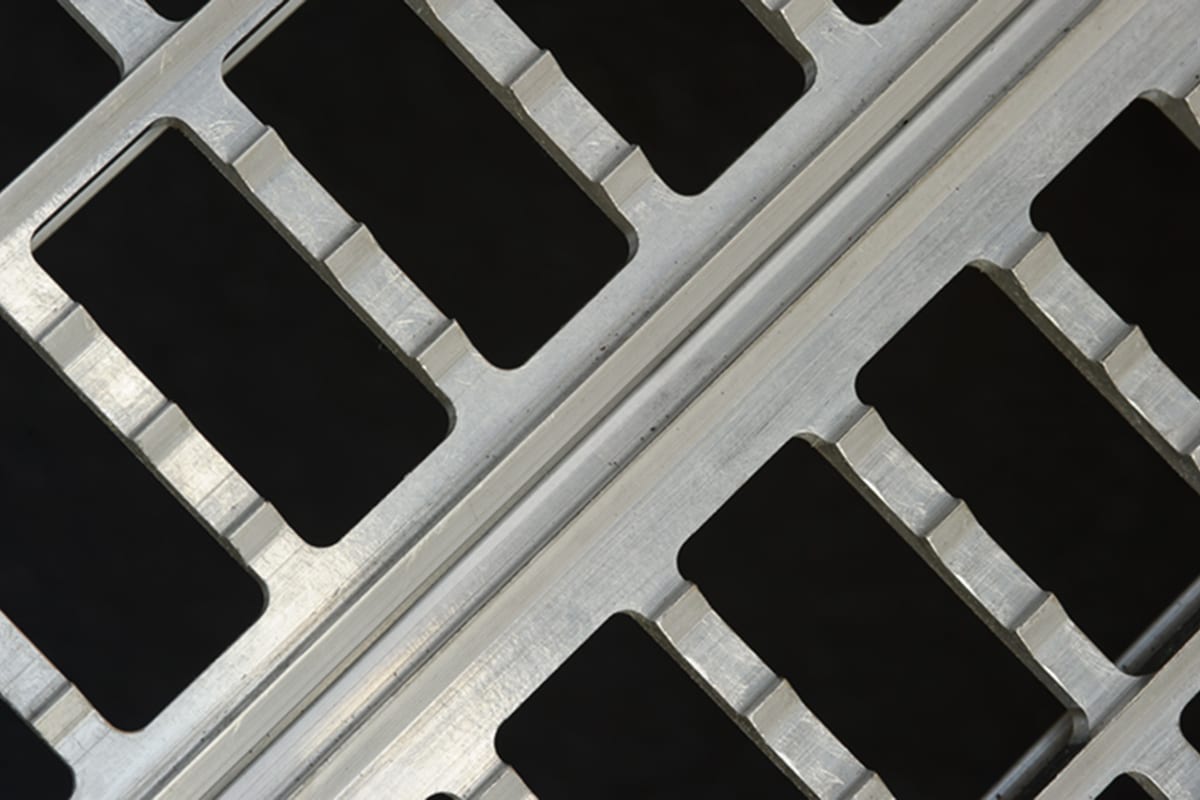

Walk Surface

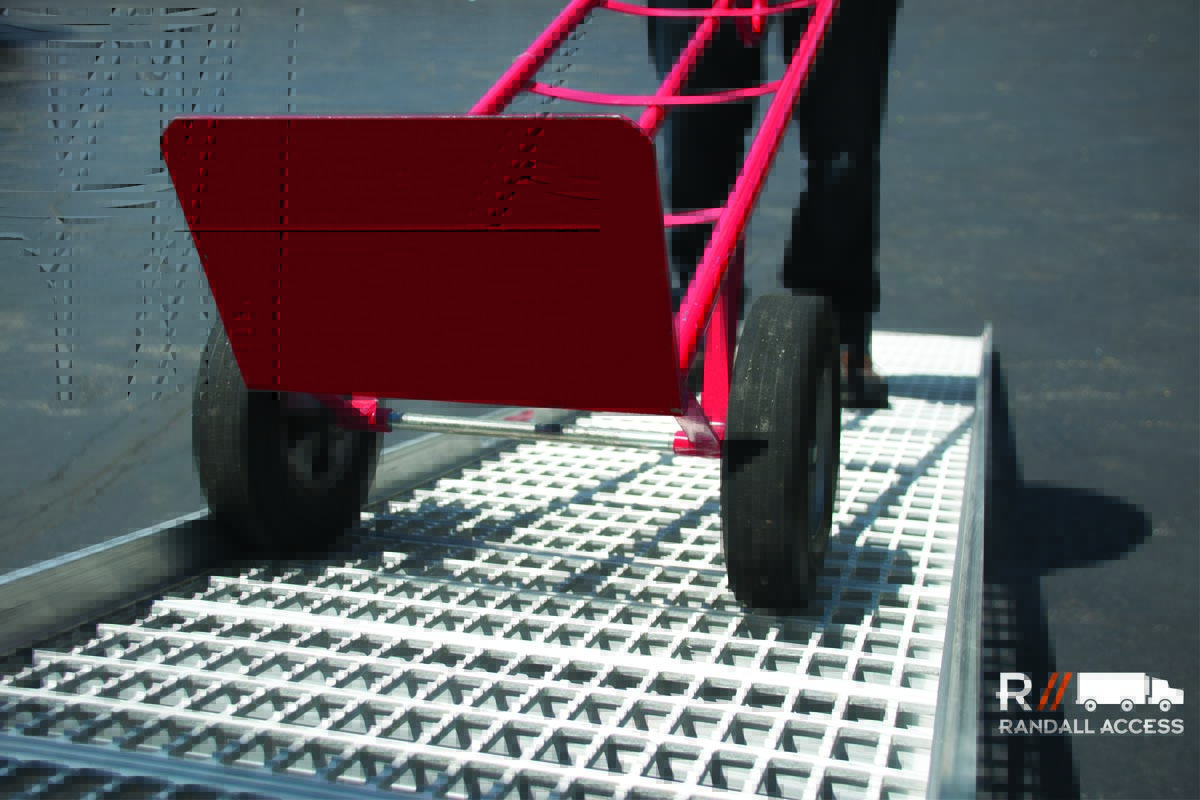

  • Aggressive, all-weather walk surface
  • Uninterrupted, continuous surface
  • Replaceable and repairable panels

Specifications

  • Standard width: 26 1/4″ (widest outer dimension)
  • Ramp height: 4-5/8″
  • Standard lengths: 16′, 14′

Options

Randall Access Straight Safety Walkramp

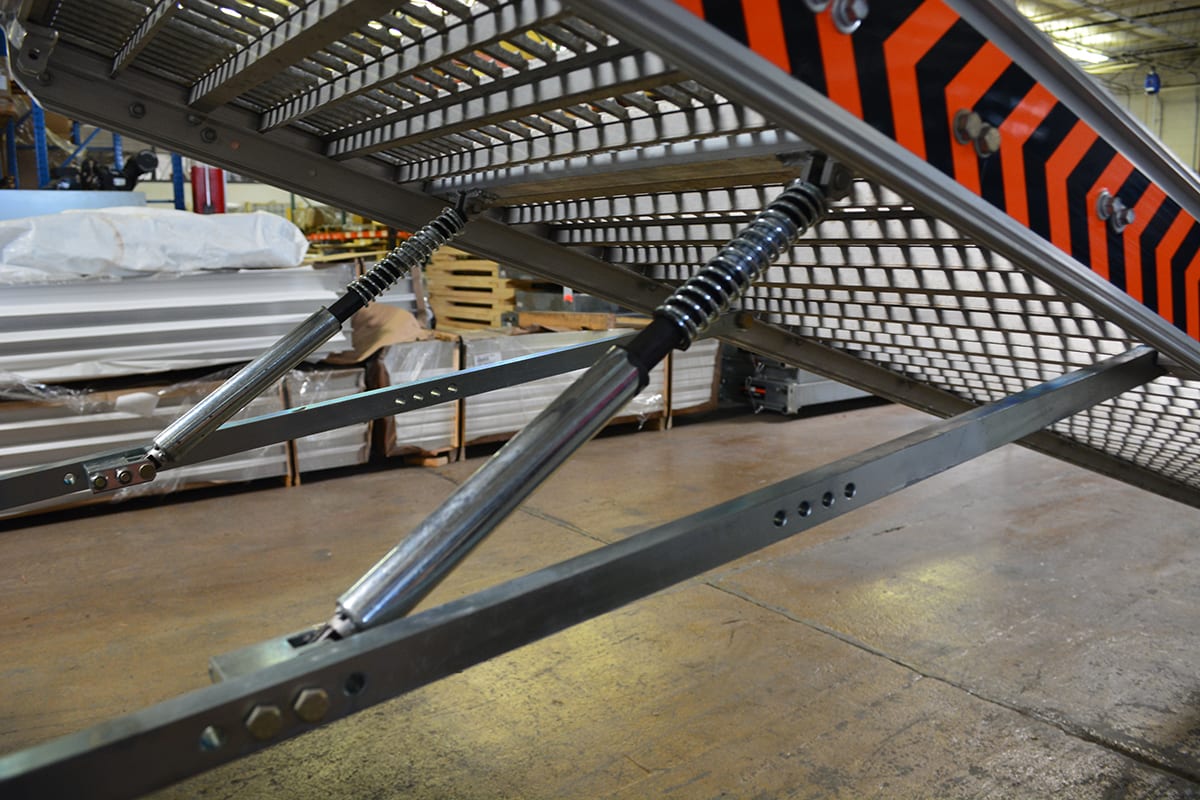

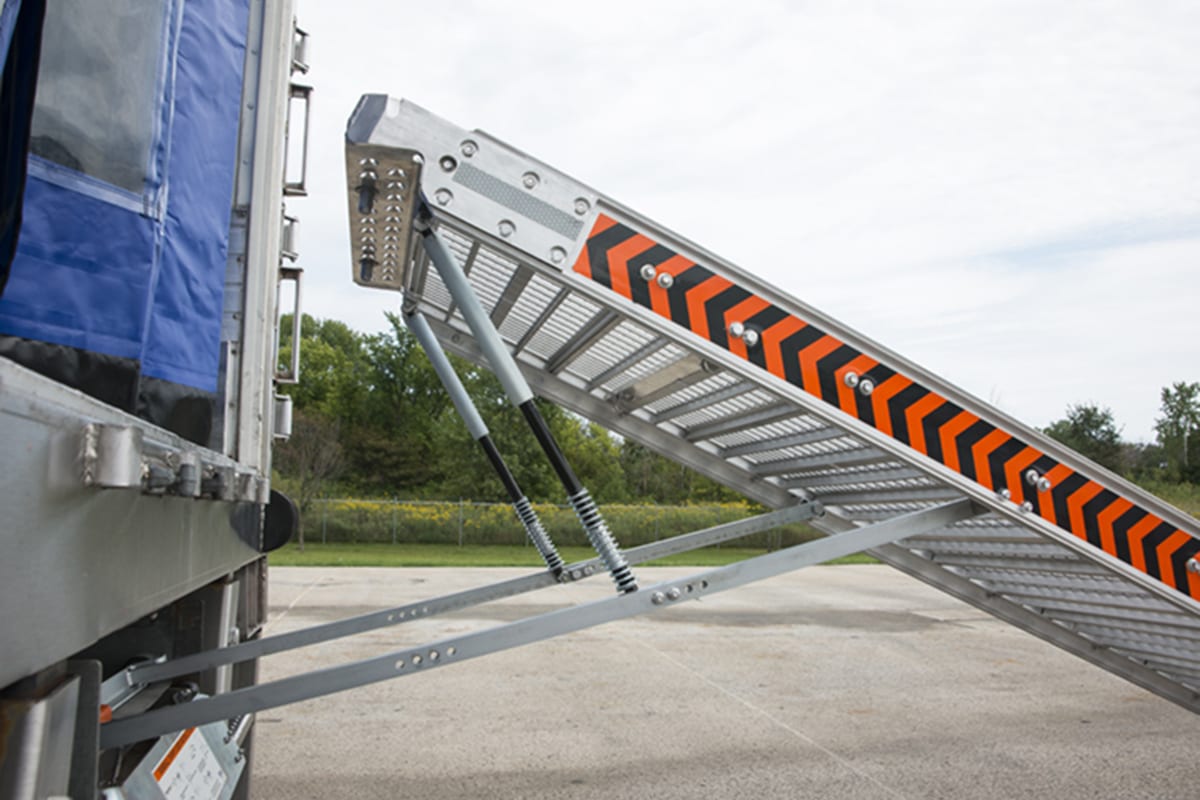

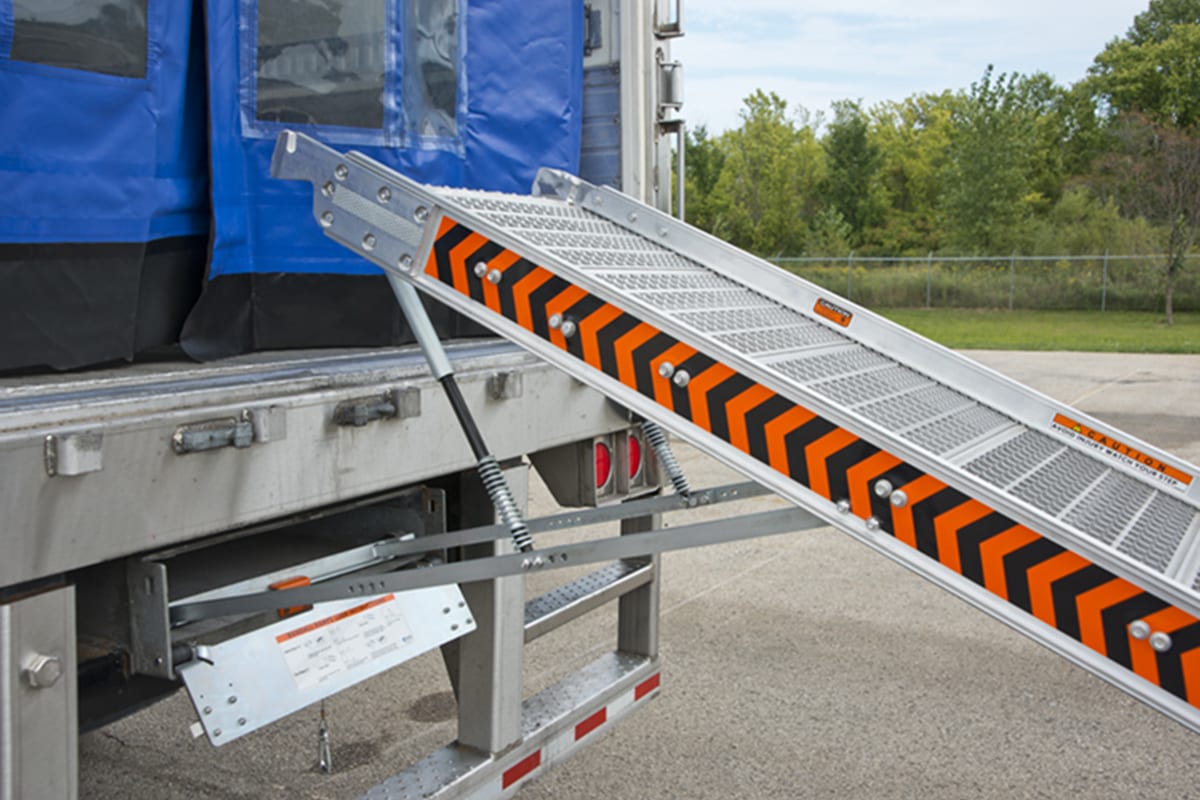

Lift Assist

  • Long Throw for greater than 11″ from top of the enclosure to trailer floor
  • Short Throw for 11″ or less from top of the enclosure
  • Dual gas shocks and compression springs

Randall Access Straight Safety Walkramp

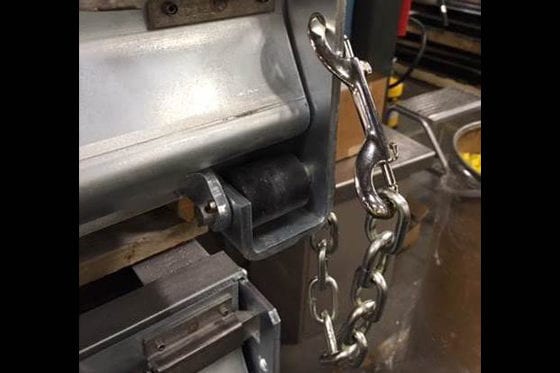

Safety Chain

  • Help ensure enclosure doors stay closed
  • Able to retrofit current enclosures

Randall Access Straight Safety Walkramp

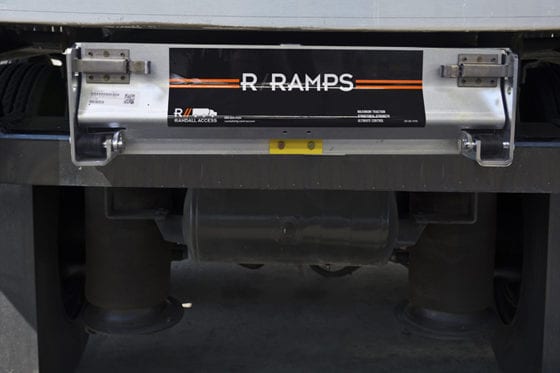

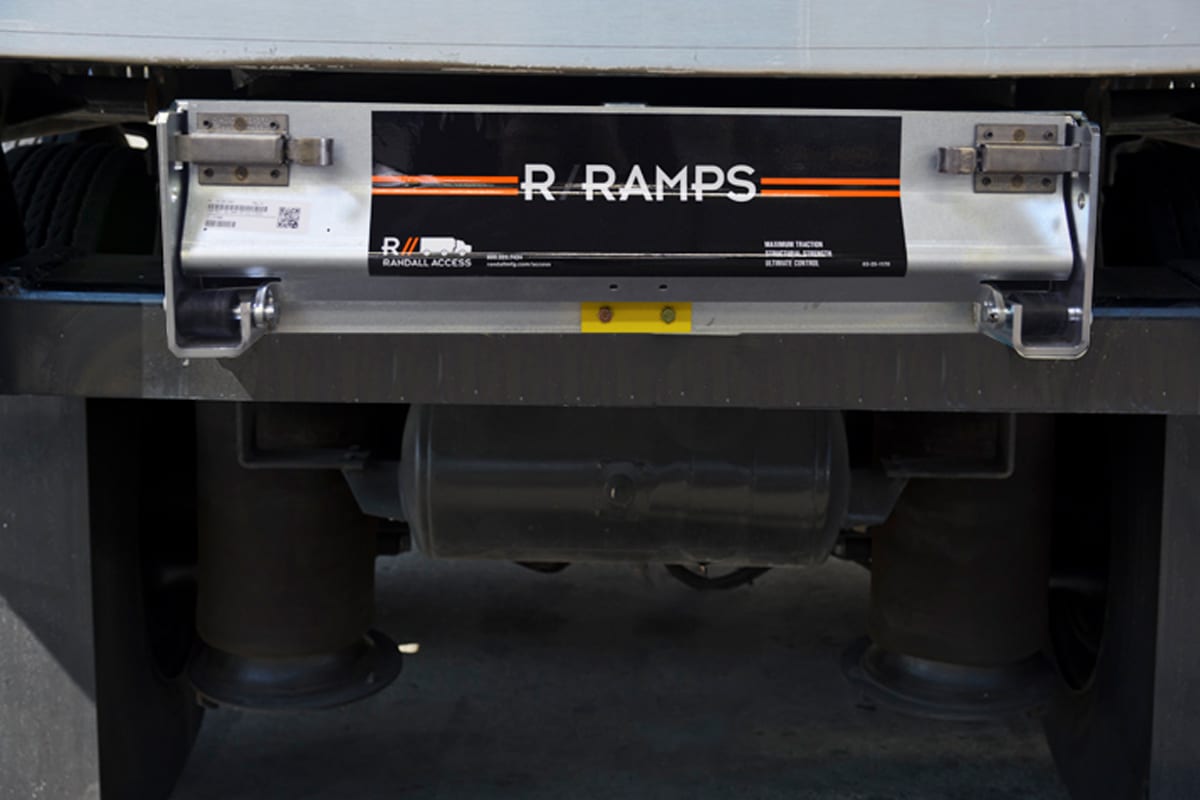

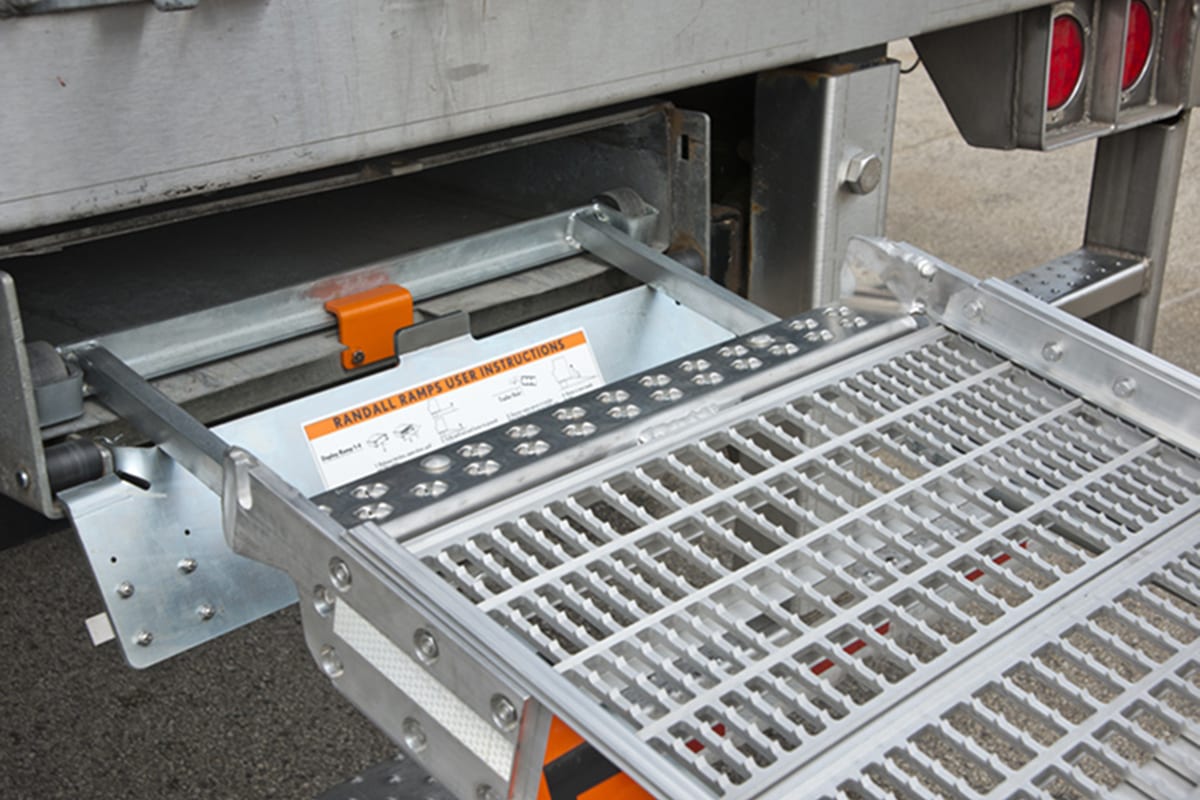

Full or Open Enclosure

  • 17′ Enclosure for 16′ walkramp
  • 15′ Enclosure for 14′ walkramps
